Name: FOX 2.0" Sierra/Silverado 2500 3500 (1999-2019) RESERVOIR SHOCK (REAR)
Brand: Fox
SKU: 980-24-955
Price: 1773.52 SAR
Availability: InStock

FOX 2.0" Sierra/Silverado 2500 3500 (1999-2019) RESERVOIR SHOCK (REAR)

Roll over image to zoom in Click on image to zoom

0-1" Lift Rear Shock
Sold individually
2019 model year (+2018 Silverado 2500)
2500/3500

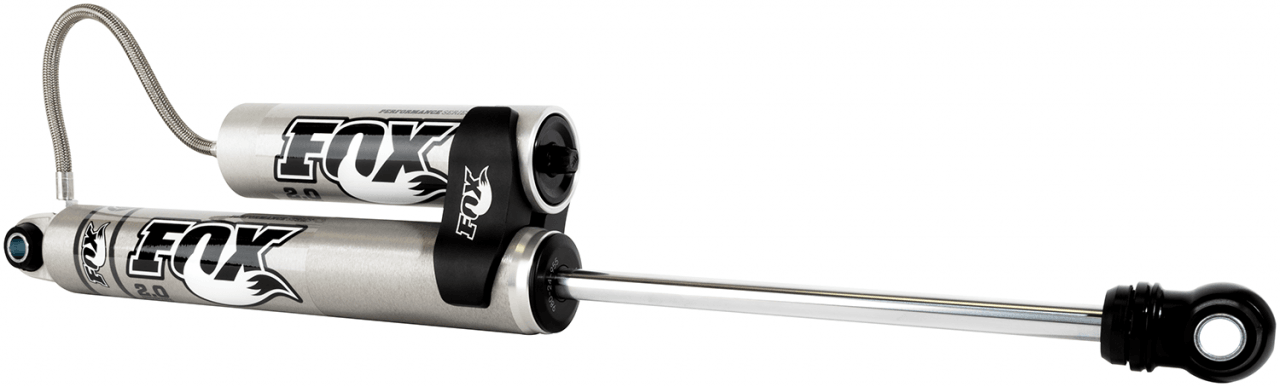

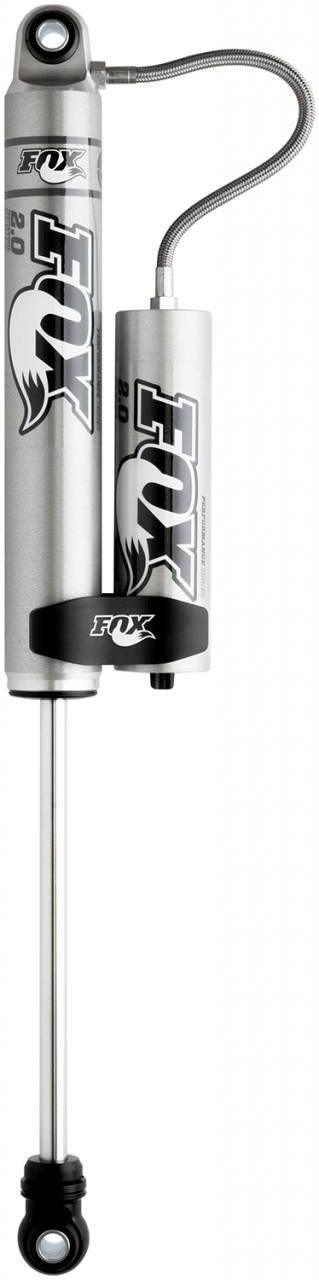

The aluminum bodied Performance Series 2.0 Reservoir smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock.

Its external reservoir allows for increase oil and nitrogen capacity while delivering a striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific vavling provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling the roughest road conditions.

Body	2.0" Impact extruded 6061-T6 aluminum will resist rust over time
Body Plating	Clear-anodized for a durable finish
Reservoir	2.0" Smooth bore 6061-T6 Aluminum is hard anodized
Components	Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft	5/8" hard chrome plated heat-treated alloy steel
Piston	Race-developed high-flow piston design
Valving	Application specific valving to maximize performance
Seals	Redundant sealing pack system main seal, wiper seal, scraper seal
Oil	JM92 Advanced Suspension Fluid for improved performance at variable temperatures
Bushings	Quiet nitrile rubber allows for increased suspension articulation
Extended	26.450
Compressed	15.850
Travel	10.600

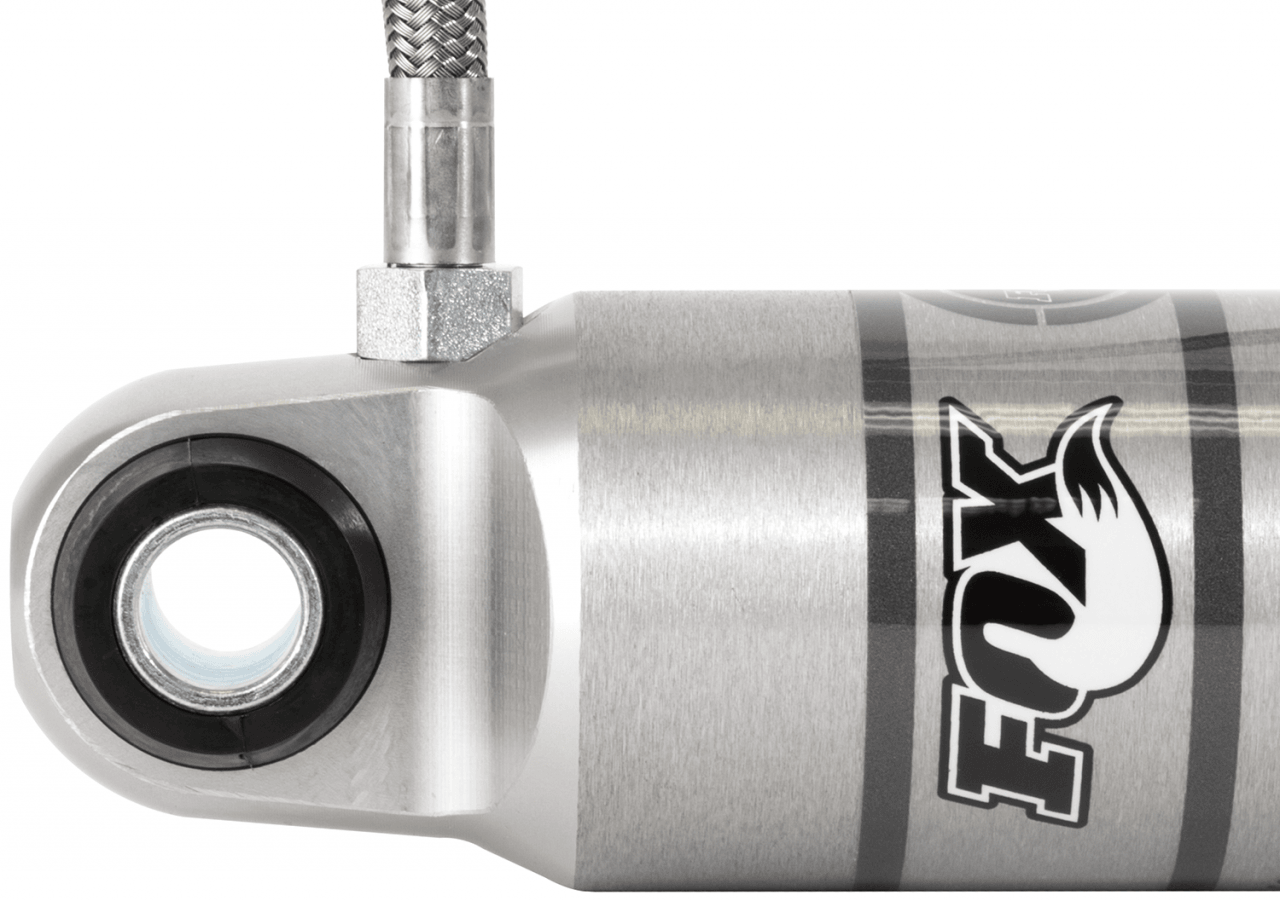

Top Mount	Eyelet

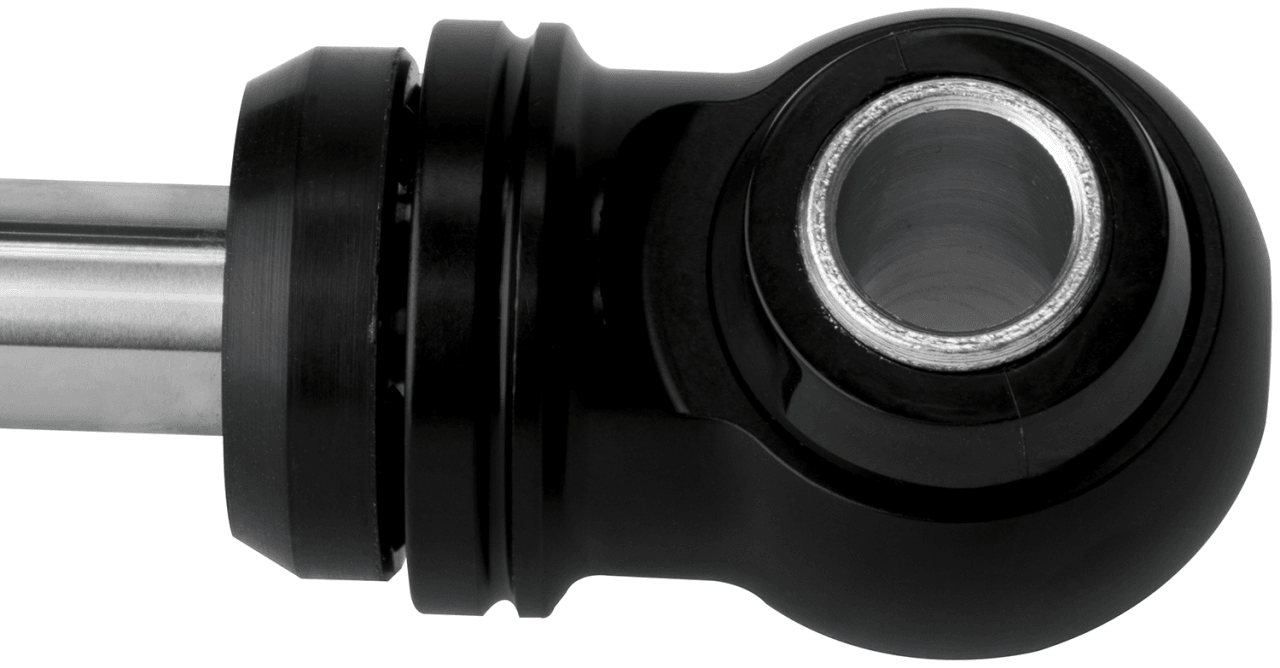

Bottom Mount	Eyelet

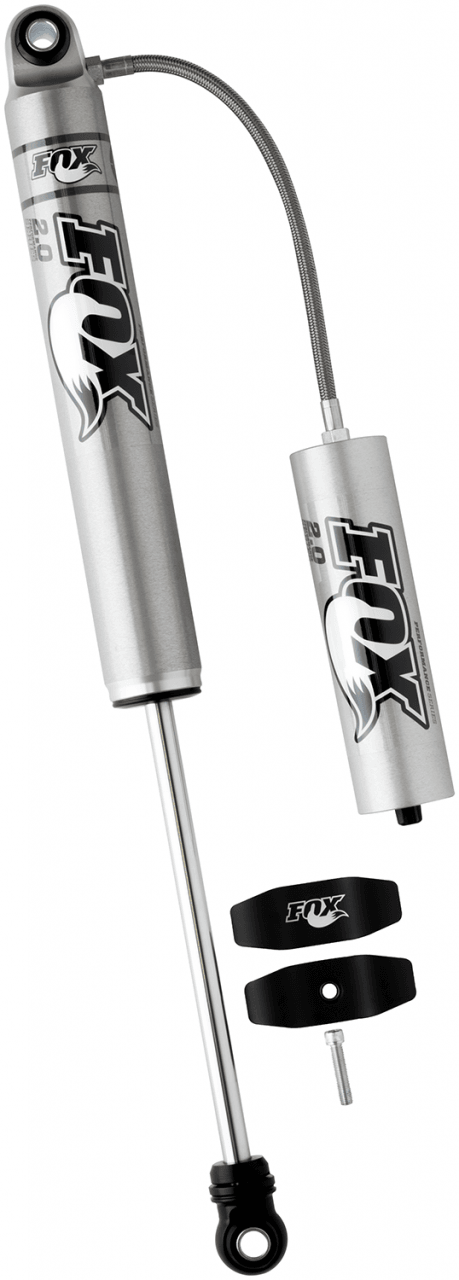

Fitment notes	Includes Billet Reservoir Clamp
Shipping Dimensions	35in x 20in x 10in (L x W x H)

MAKE	MODLE	YEAR	WD	LIFT
Chevrolet	Silverado 2500 HD	2019	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 3500 HD	2019	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Sierra 2500 HD	2019	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Sierra 3500 HD	2019	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 2500 HD	2018	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 3500 HD	2018	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Sierra 2500 HD	2018	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Sierra 3500 HD	2018	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 2500 HD	2017	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 3500 HD	2017	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Sierra 2500 HD	2017	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Sierra 3500 HD	2017	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 2500 HD	2016	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 3500 HD	2016	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Sierra 2500 HD	2016	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Sierra 3500 HD	2016	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 2500 HD	2015	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 3500 HD	2015	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Sierra 2500 HD	2015	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Sierra 3500 HD	2015	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 2500 HD	2014	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 3500 HD	2014	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Sierra 2500 HD	2014	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Sierra 3500 HD	2014	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 2500 HD	2013	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 3500 HD	2013	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Suburban 2500	2013	ALL	0-3"
	Includes Billet Reservoir Clamp
GMC	Sierra 2500 HD	2013	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Sierra 3500 HD	2013	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Yukon XL 2500	2013	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 2500 HD	2012	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 3500 HD	2012	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Suburban 2500	2012	ALL	0-3"
	Includes Billet Reservoir Clamp
GMC	Sierra 2500 HD	2012	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Sierra 3500 HD	2012	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Yukon XL 2500	2012	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 2500 HD	2011	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 3500 HD	2011	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Suburban 2500	2011	ALL	0-3"
	Includes Billet Reservoir Clamp
GMC	Sierra 2500 HD	2011	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Sierra 3500 HD	2011	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Yukon XL 2500	2011	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 2500 HD	2010	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 3500 HD	2010	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Suburban 2500	2010	ALL	0-3"
	Includes Billet Reservoir Clamp
GMC	Sierra 2500 HD	2010	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Sierra 3500 HD	2010	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Yukon XL 2500	2010	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 2500 HD	2009	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 3500 HD	2009	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Suburban 2500	2009	ALL	0-3"
	Includes Billet Reservoir Clamp
GMC	Sierra 2500 HD	2009	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Sierra 3500 HD	2009	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Yukon XL 2500	2009	ALL	0-1"
	Includes Billet Reservoir Clamp
Hummer	H2	2009	4WD	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 2500 HD	2008	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 3500 HD	2008	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Suburban 2500	2008	ALL	0-3"
	Includes Billet Reservoir Clamp
GMC	Sierra 2500 HD	2008	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Sierra 3500 HD	2008	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Yukon XL 2500	2008	ALL	0-1"
	Includes Billet Reservoir Clamp
Hummer	H2	2008	4WD	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 1500 HD Classic	2007	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 2500 HD	2007	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 3500 HD	2007	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Suburban 2500	2007	ALL	0-3"
	Includes Billet Reservoir Clamp
GMC	Sierra 1500 HD Classic	2007	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Sierra 2500 HD	2007	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Sierra 2500 HD Classic	2007	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Sierra 3500 HD	2007	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Yukon XL 2500	2007	ALL	0-1"
	Includes Billet Reservoir Clamp
Hummer	H2	2007	4WD	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Avalanche 2500	2006	ALL	0-3"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 1500 HD	2006	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 2500 HD	2006	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 3500	2006	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Suburban 2500	2006	ALL	0-3"
	Includes Billet Reservoir Clamp
GMC	Sierra 1500 HD	2006	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Sierra 2500 HD	2006	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Sierra 3500	2006	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Yukon XL 2500	2006	ALL	0-1"
	Includes Billet Reservoir Clamp
Hummer	H2	2006	4WD	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Avalanche 2500	2005	ALL	0-3"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 1500 HD	2005	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 2500 HD	2005	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 3500	2005	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Suburban 2500	2005	ALL	0-3"
	Includes Billet Reservoir Clamp
GMC	Sierra 1500 HD	2005	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Sierra 2500 HD	2005	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Sierra 3500	2005	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Yukon XL 2500	2005	ALL	0-1"
	Includes Billet Reservoir Clamp
Hummer	H2	2005	4WD	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Avalanche 2500	2004	ALL	0-3"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 2500	2004	4WD	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 2500	2004	RWD	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 2500 HD	2004	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 3500	2004	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Suburban 2500	2004	ALL	0-3"
	Includes Billet Reservoir Clamp
GMC	Sierra 2500	2004	4WD	0-1"
	Includes Billet Reservoir Clamp
GMC	Sierra 2500	2004	RWD	0-1"
	Includes Billet Reservoir Clamp
GMC	Sierra 2500 HD	2004	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Sierra 3500	2004	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Yukon XL 2500	2004	ALL	0-1"
	Includes Billet Reservoir Clamp
Hummer	H2	2004	4WD	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Avalanche 2500	2003	ALL	0-3"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 1500 HD	2003	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 2500	2003	4WD	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 2500	2003	RWD	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 2500 HD	2003	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 3500	2003	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Suburban 2500	2003	ALL	0-3"
	Includes Billet Reservoir Clamp
GMC	Sierra 1500 HD	2003	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Sierra 2500	2003	4WD	0-1"
	Includes Billet Reservoir Clamp
GMC	Sierra 2500	2003	RWD	0-1"
	Includes Billet Reservoir Clamp
GMC	Sierra 2500 HD	2003	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Sierra 3500	2003	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Yukon XL 2500	2003	ALL	0-1"
	Includes Billet Reservoir Clamp
Hummer	H2	2003	4WD	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Avalanche 2500	2002	ALL	0-3"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 1500 HD	2002	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 2500	2002	4WD	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 2500	2002	RWD	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 2500 HD	2002	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 3500	2002	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Suburban 2500	2002	ALL	0-3"
	Includes Billet Reservoir Clamp
GMC	Sierra 1500 HD	2002	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Sierra 2500	2002	4WD	0-1"
	Includes Billet Reservoir Clamp
GMC	Sierra 2500	2002	RWD	0-1"
	Includes Billet Reservoir Clamp
GMC	Sierra 2500 HD	2002	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Sierra 3500	2002	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Yukon XL 2500	2002	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 1500 HD	2001	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 2500	2001	4WD	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 2500	2001	RWD	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 2500 HD	2001	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 3500	2001	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Suburban 2500	2001	ALL	0-3"
	Includes Billet Reservoir Clamp
GMC	Sierra 1500 HD	2001	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Sierra 2500	2001	4WD	0-1"
	Includes Billet Reservoir Clamp
GMC	Sierra 2500	2001	RWD	0-1"
	Includes Billet Reservoir Clamp
GMC	Sierra 2500 HD	2001	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Sierra 3500	2001	ALL	0-1"
	Includes Billet Reservoir Clamp
GMC	Yukon XL 2500	2001	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 2500	2000	4WD	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 2500	2000	RWD	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Suburban 2500	2000	ALL	0-3"
	Includes Billet Reservoir Clamp
GMC	Sierra 2500	2000	4WD	0-1"
	Includes Billet Reservoir Clamp
GMC	Sierra 2500	2000	RWD	0-1"
	Includes Billet Reservoir Clamp
GMC	Yukon XL 2500	2000	ALL	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 2500	1999	4WD	0-1"
	Includes Billet Reservoir Clamp
Chevrolet	Silverado 2500	1999	RWD	0-1"
	Includes Billet Reservoir Clamp
GMC	Sierra 2500	1999	4WD	0-1"
	Includes Billet Reservoir Clamp
GMC	Sierra 2500	1999	RWD	0-1"
	Includes Billet Reservoir Clamp

Recover password

FOX 2.0" Sierra/Silverado 2500 3500 (1999-2019) RESERVOIR SHOCK (REAR)

Description

You may also like

Recently viewed

Search By Year, Make and Model
