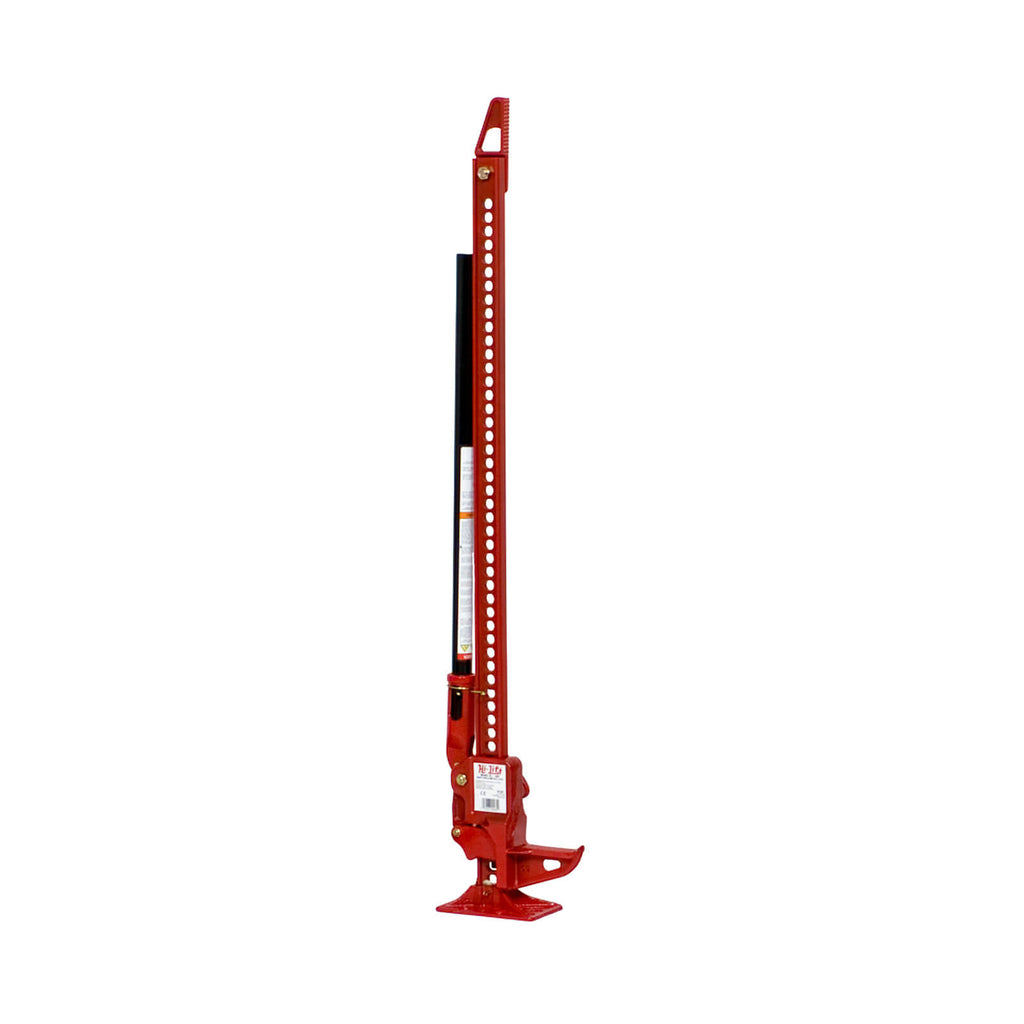

All-Cast Jack

Size

42” (107 cm)

48” (122 cm)

60” (152 cm)

Min. Lift Height

4.5" (11.43 cm)

4.5" (11.43 cm)

4.5" (11.43 cm)

Max. Lift Height

34" (86.36 cm)

38.63" (98.12 cm)

49.75" (126.37 cm)

Overall Height

46" (116.84 cm)

50.75" (128.91 cm)

61.75" (156.85 cm)

Width

5" (12.7 cm)

5" (12.7 cm)

5" (12.7 cm)

Depth

9.63" (24.46 cm)

9.63" (24.46 cm)

9.63" (24.46 cm)

Rated Load (RL)

4,660 lbs (2,113 kg)

4,660 lbs (2,113 kg)

4,660 lbs (2,113 kg)

RL on upper 12" (30.5cm)

-

-

2,660 lbs (1206 kg)

Tested Load (TL)

7,000 lbs (3,175 kg)

7,000 lbs (3,175 kg)

7,000 lbs (3,175 kg)

TL on upper 12" (30.5cm)

-

-

4,000 lbs (1,814 kg)

Winching Capacity

5,000 lbs (2,268 kg)

5,000 lbs (2,268 kg)

5,000 lbs (2,268 kg)

Clamping Capacity

750 lbs (340 kg)

750 lbs (340 kg)

750 lbs (340 kg)

Weight

27.78 lbs (12.6 kg)

28.16 lbs (12.77 kg)

31.31 lbs (14.2 kg)
