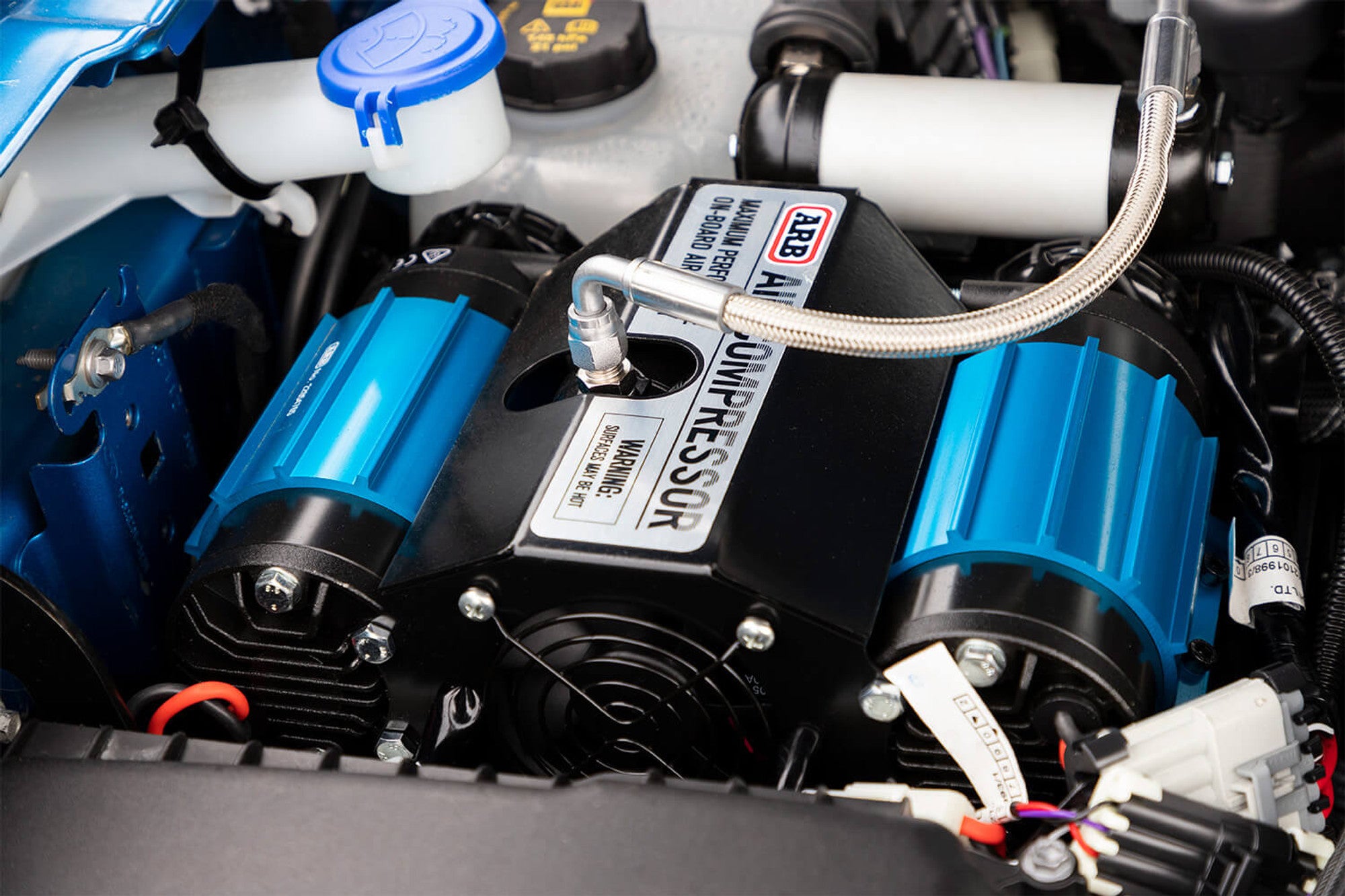

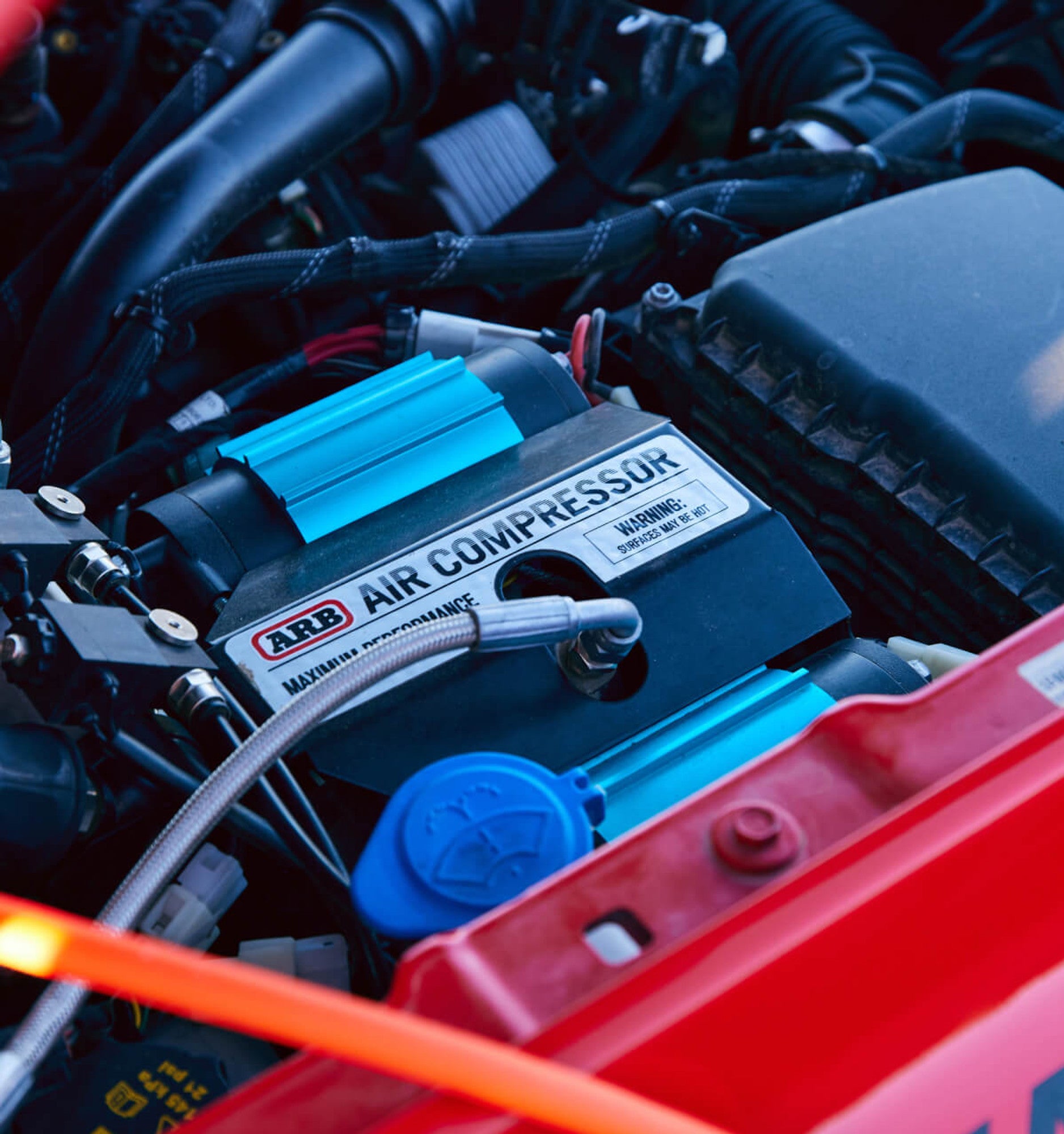

Permanently mounted, the range of ARB vehicle mounted compressors are water, dust, heat and shock resistant to withstand the rigours of off road travel.

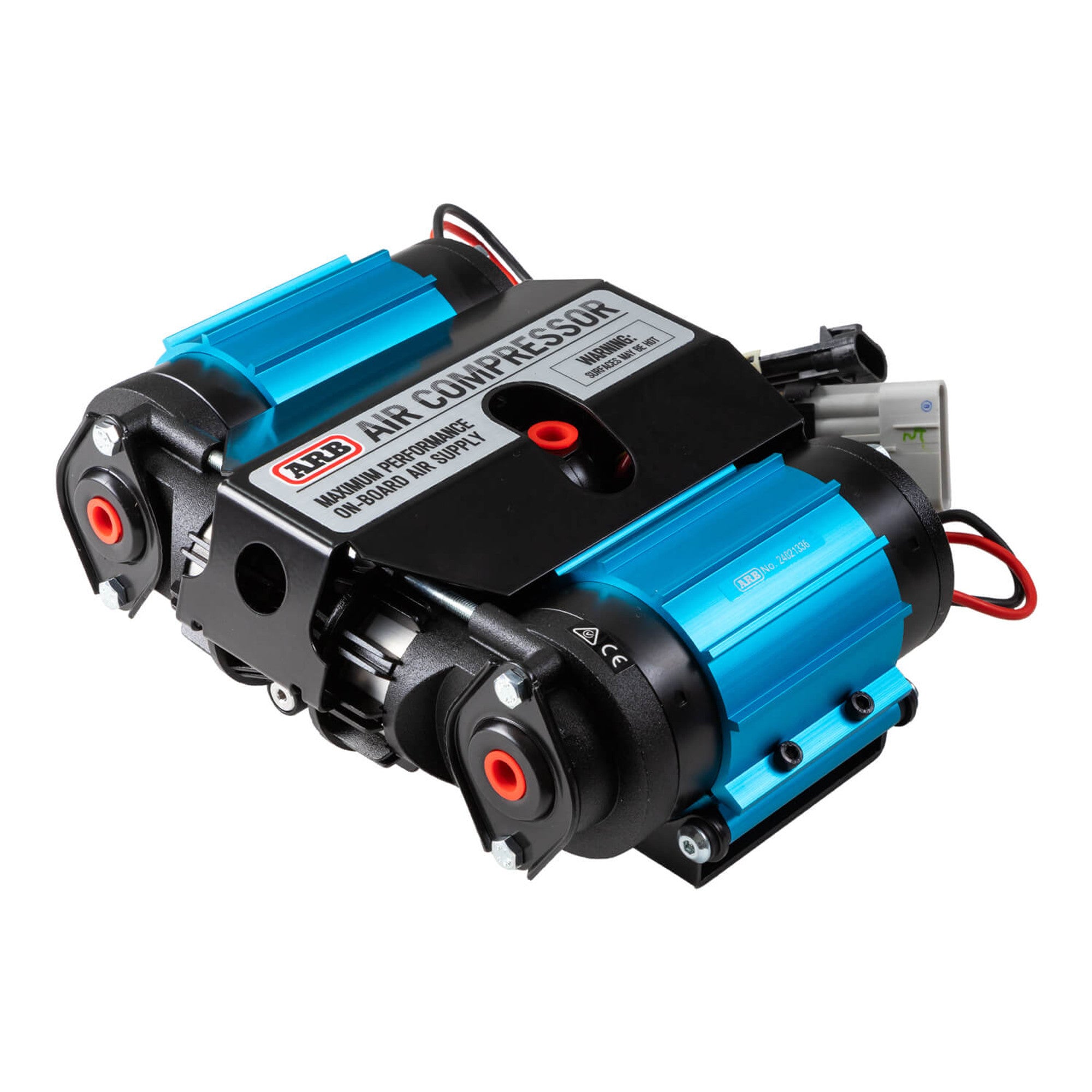

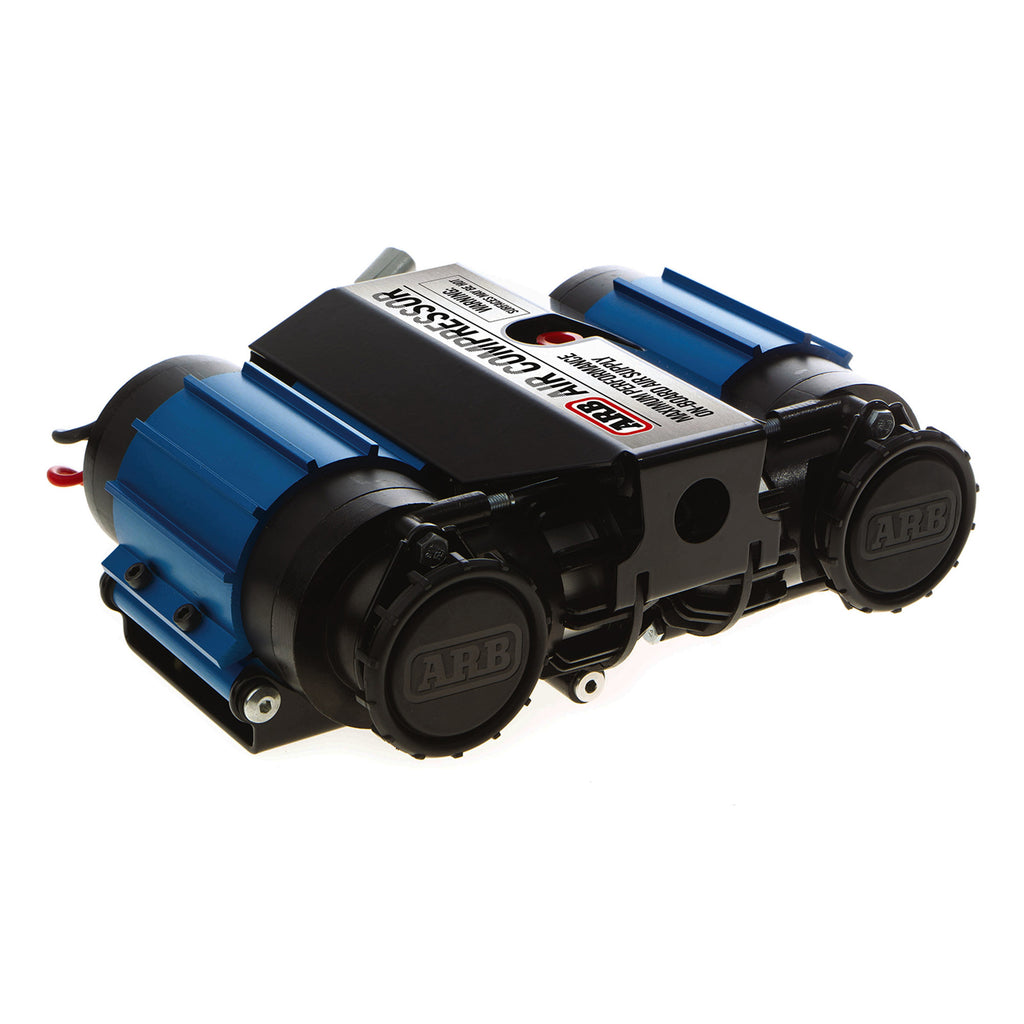

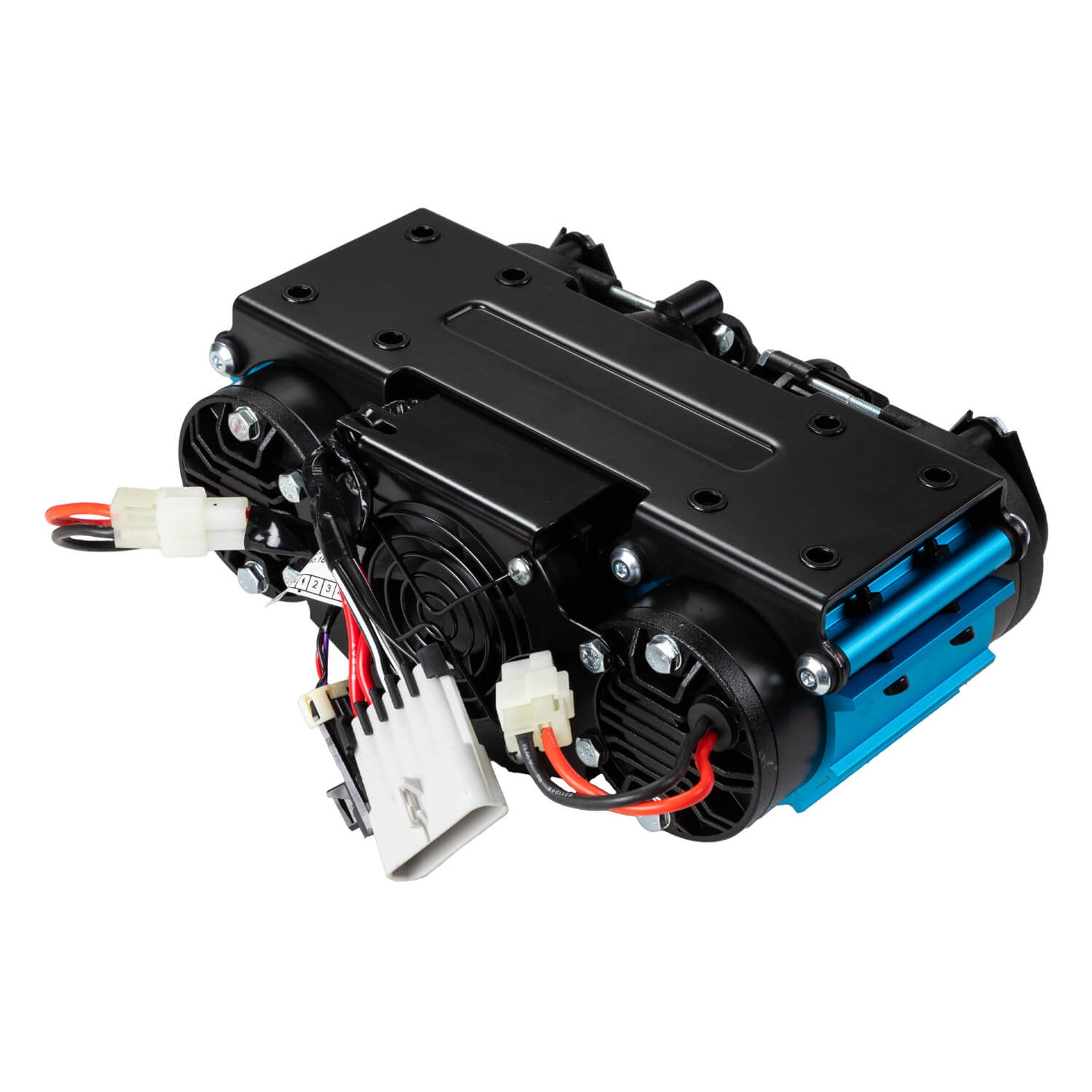

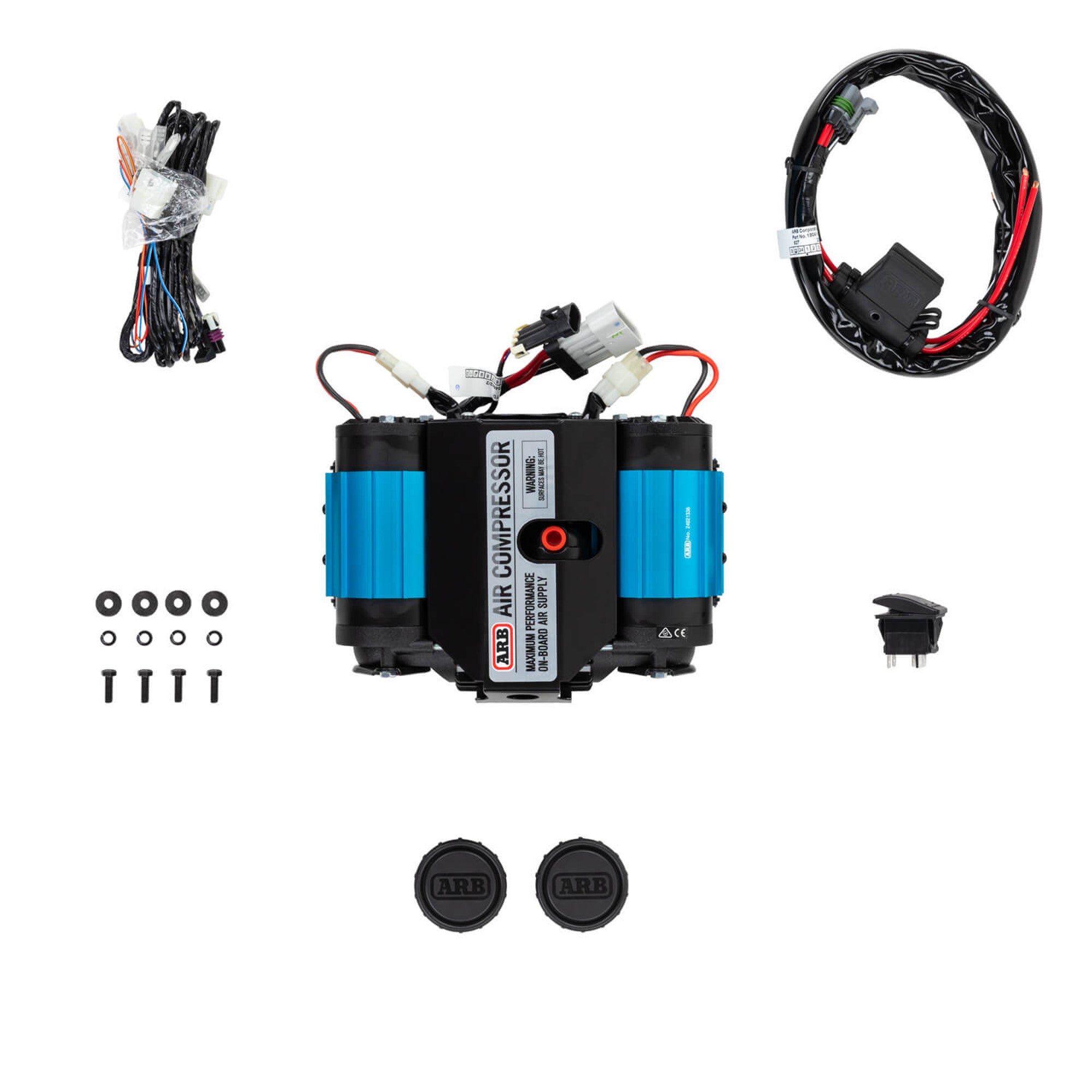

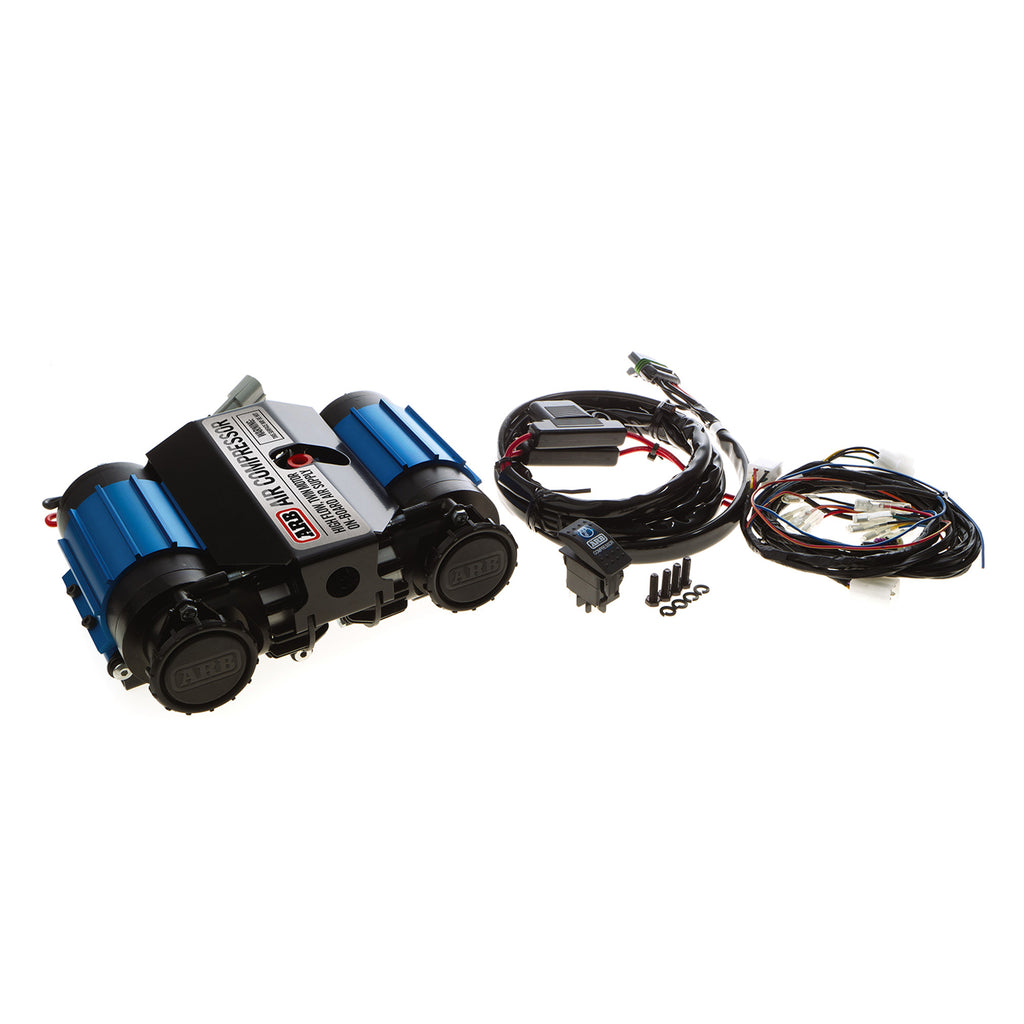

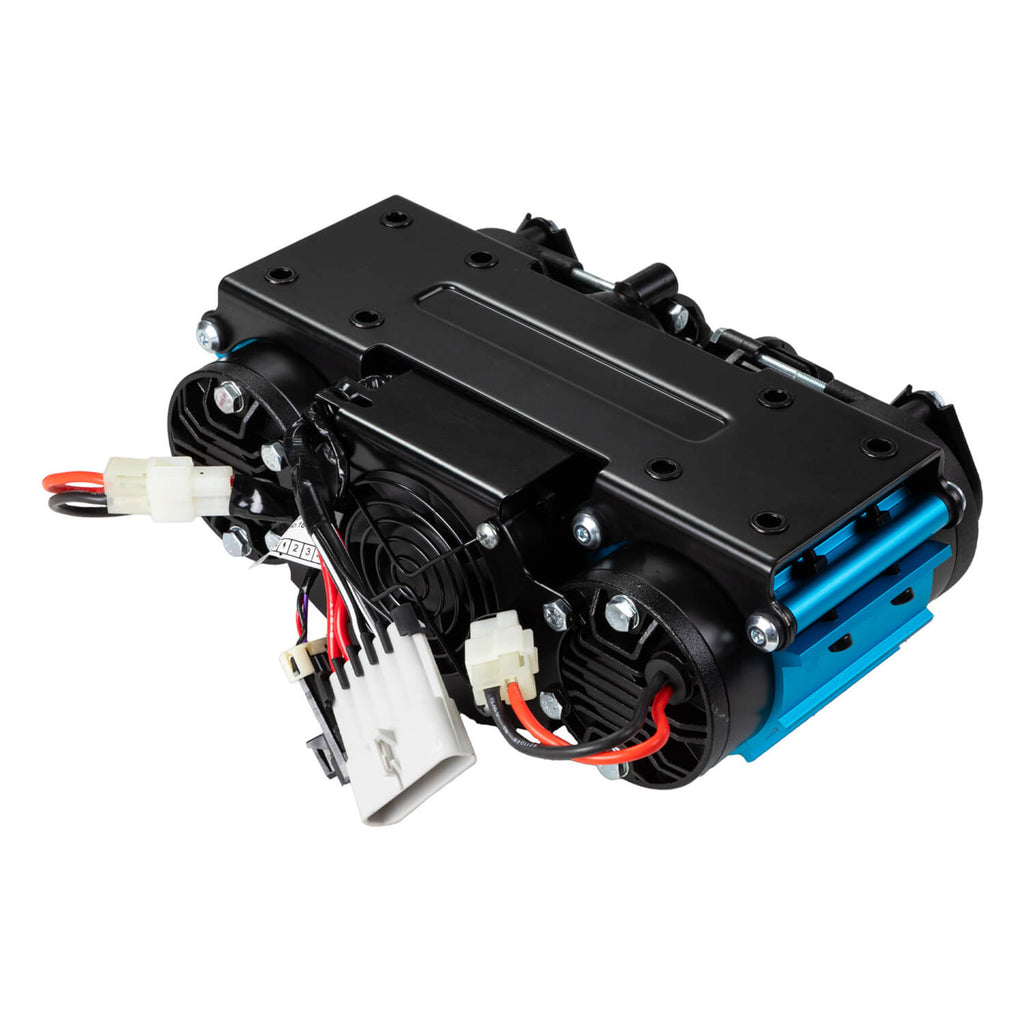

ARBs new CKMTA12 twin on-board compressor kit was designed to fill the market need for a compact sized yet high-volume compressed air source to suit the high volume airflow needs of most air powered tools, and also to suit the actuation and control needs of the ARB Air Locker , and the harsh and demanding environment of the ARB Air Locker user. ;
Features & Benefits
- Designed for inflating Tires and Air Locker activation when used in conjunction with optional accessories
- On-board model available in either a 12V or 24V configuration
- Suitable for many air tools when used in conjunction with a 4L air tank (optional with on-board models)
- 100% duty cycle
- Sealed for moisture and dust resistance
- Hard anodized cylinder bores for reduced friction
- Teflon impregnated carbon fiber piston seals for maximum trouble free life
- Anodized mounting bracket dissipates heat
- Integrated pressure switch, relays and IP55 (waterproof/dustproof) brushless fan cools electronics, motors and cylinder heads
- Over-pressure safety valve equipped
-
Prop 65No
-
Volts12V
-
Width7.5 inch
-
Height4 inch
-
Length10.8 inch
-
Weight17.4 lb
-
Max Psi150
-
Max Amps68.6
-
IP RatingIP55
-
Duty Cycle100% 60/0
-
Air Flow 0PSI6.16CFM
-
Air Flow 29PSI4.68CFM
-
DesignOnboard
| Shipping Dimensions. 50 x 26 x 12 centimeters (LxWxH) |
