Description
The LP6 Pro is a 6-inch powerhouse featuring a total of 11,225 total lumens and of 200-degree spread of usable LED light thanks to the dedicated peripheral lighting of our patented Integrated Peripheral Technology (IPT). To keep your light performing at its highest potential, the LP6 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks – drastically improving cooling capacity and performance. With an colored daytime running light, low power, and high-power mode, the LP6 easily fulfills all your lighting needs.

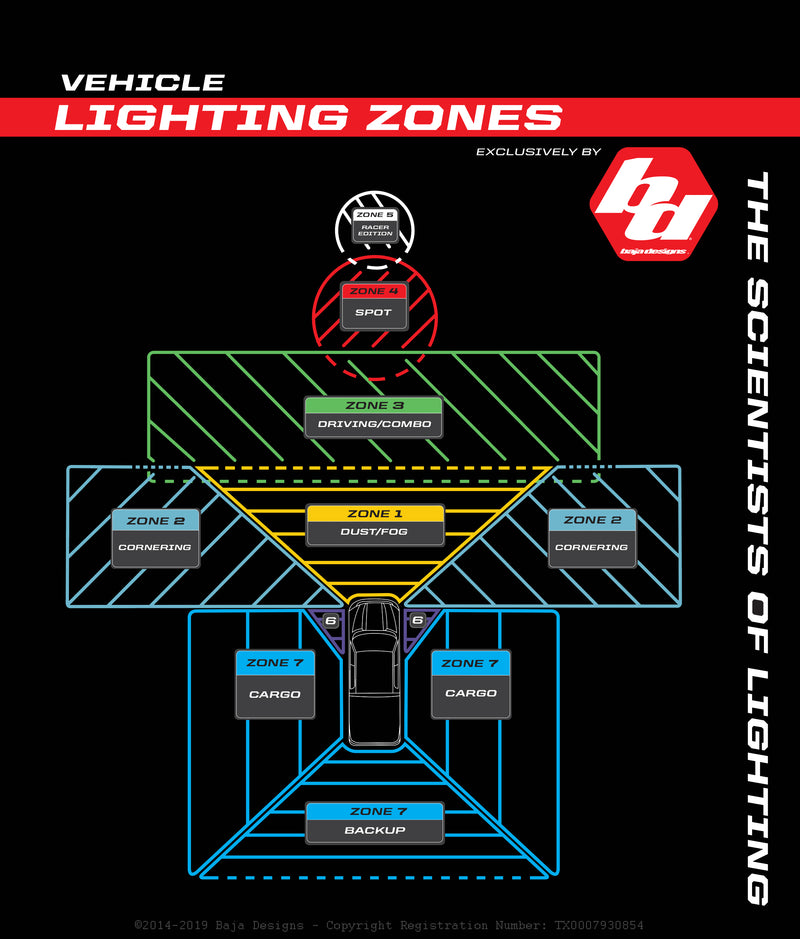

The LP6 Pro is available in multiple patterns to suit your needs. The Driving/Combo pattern provide maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 degrees) and spot (8 degrees) optics to provide you with a smooth blend of light for both near-field applications and distance (Lighting Zones, 1,2, 3). The Spot pattern is a longer and narrower 8-degree beam focus for illumination further down the trail or road (Lighting Zone 4 & 5) and is designed to be used in conjunction with additional wide cornering and/or driving/combo auxiliary lights.
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Safely Driving LEDs at 100%
5000K Daylight – Less Driver Fatigue, Natural Color
LP6Lumens & Watts
103w / 11,225 Lumens /Designed for Near Field & Midfield Applications
Backlight Options: Amber.
Specifications
| Amperage Rating (A) |
7.500 |
| Average Rated Life (hr.) |
49,930 |
| Backlight Amperage Rating (A) |
0.300 |
| Backlight Wattage (W) |
4.140 |
| Beam Pattern |
Driving/Combo |
| Bezel Material |
Billet Machined Aluminum |
| Brightness (Lumens) |
11225 |
| Description |
Driving/Combo |
| Housing Color |
Black |
| Housing Material |
Hard Anodized Machined Aluminum |
| Lens Material |
Hardcoated Polycarbonate |
| Light Quantity |
1 |
| Lighting Modes |
High Beam/Low Beam/Day-Time Running Backlighting |
| Lighting Quantity |
6 |
| Lighting Technology |
LED |
| Lighting Type |
Forward Projecting |
| Mounting Hardware Included |
Yes |
| Mounting Hardware Material |
Stainless Steel |
| Overvoltage Protection |
Built-In |
| Product Type |
LP6 Pro LED Light Pod |
| Secondary Amperage Rating (A) |
1.000 |
| Secondary Brightness (Lumens) |
1972 |
| Secondary Light Quantity |
4 LEDs |
| Secondary Lighting Technology |
LED |
| Secondary Lighting Type |
Integrated Peripheral Technology (IPT) |
| Secondary Wattage (W) |
15 |
| Terminal Connector |
DT06-4S Deutsch |
| Terminal Type |
Mating Connector |
| Universal or Specific |
Universal |
| Wattage (W) |
103.500 |
| Wiring Harness Included |
No |
NOTE: This light does not come with a wiring harness.
Shipping Dimension's.
30cm x 25cm x 13cm (LxWxH)
