Consisting of:
2 x LASS027 - Leg Spacer 6mm (Pair) - by Front Runner
4 x LASS102 - No 2 Leg 130mm (Pair) - by Front Runner
1 x RRSTG10 - Slimline II Tray - 1345mm(W) X 1964mm(L) - by Front Runner
Material used:
Black epoxy powder-coated T6 aluminium
3CR12 Stainless Steel
Approximate Installed Weight 32kg (71lbs)

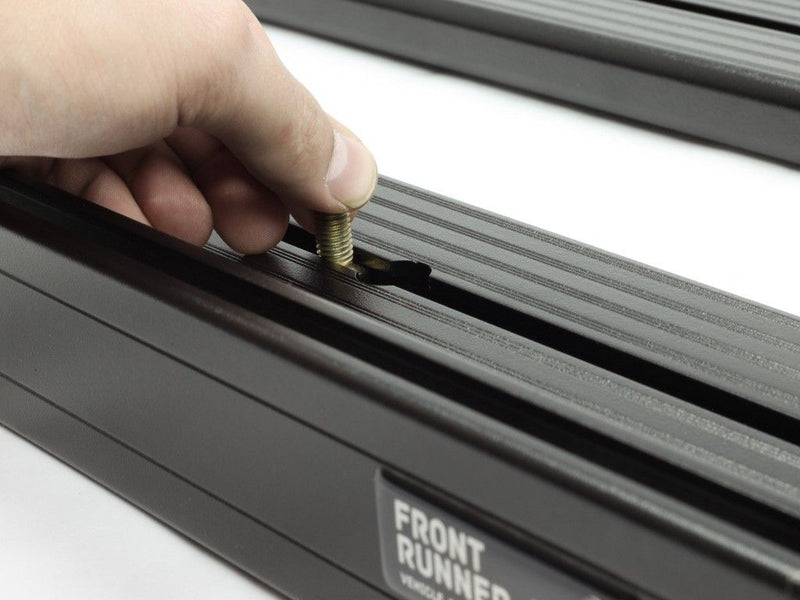

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
To determine the approximate height from your vehicle's roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.
If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.
If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.
Shipping Dimensions:
Width 45cm
Length 172cm
Height 28cm
Shipping Weight:
Weight 37.7kg (82.9lbs)
