- 0-1.5" Lift Rear Shocks
-
Sold individually
- 2008-2021 Land Cruiser 200
- 1998-2007 Land Cruiser 100
- 2003-2021Land Cruiser Prado 120/150
- 2003-2021 4Runner
- 2005-2014 Fortuner (4x4 2" lift)

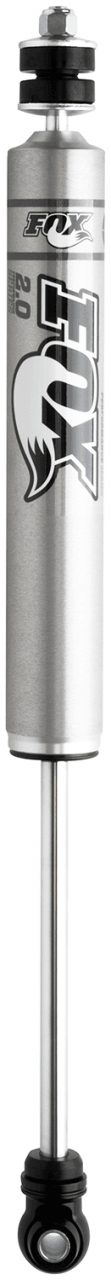

The Performance Series 2.0 IFP smooth body shocks contain the latest in shock technology to transform the performance of your Truck or SUV. They use our race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions.
The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find our race-proven performance valving technology Our Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 IFP shock a predicable ride quality capable of handling the roughest road conditions.
| Body |
2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time |
| Body Plating |
Clear-anodized for a durable finish |
| Reservoir |
Internal IFP mono-tube reservoir design |
| Components |
Black-anodized, CNC-machined 6061-T6 billet aluminum |
| Shaft |
5/8" hard chrome plated heat-treated alloy steel |
| Piston |
Race-developed high-flow piston design |
| Valving |
Application specific valving to maximize performance |
| Seals |
Redundant sealing pack system main seal, wiper seal, scraper seal |
| Oil |
JM92 Advanced Suspension Fluid for improved performance at variable temperatures |
| Bushings |
Quiet nitrile rubber allows for increased suspension articulation |
| Extended |
23.550 |
| Compressed |
14.950 |
| Travel |
8.600 |
| Top Mount |
Stem Top |
| Bottom Mount |
Eyelet |
| Fitment notes |
200 Series |
| Shipping Dimensions |
63.5cm x 8cm x 8cm (L x W x H) |
