Description

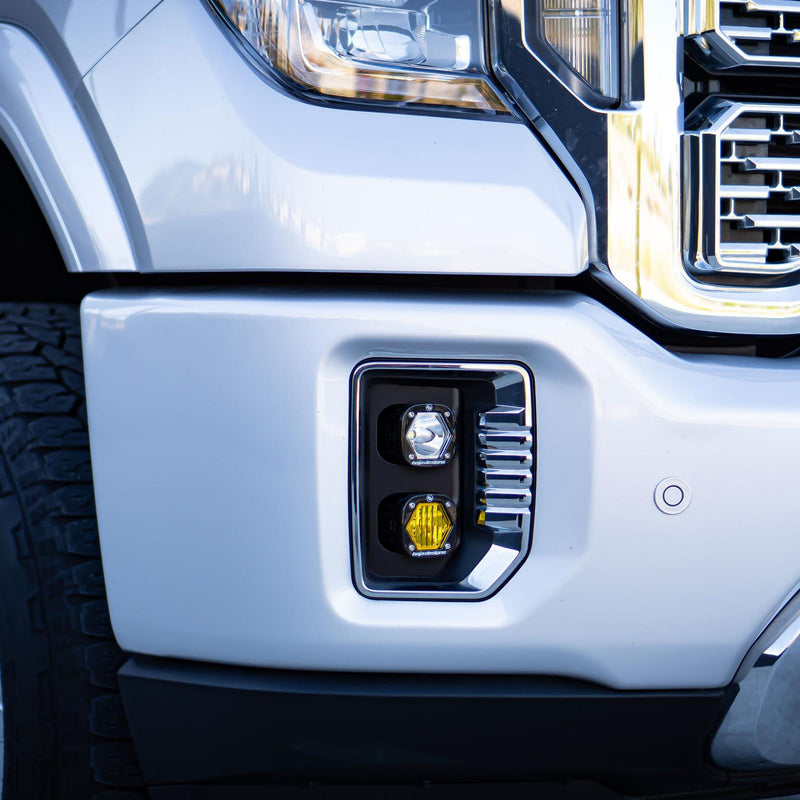

The Baja Designs Fog Pocket kit is the perfect mix of high-quality on and off-road performance for your GMC Sierra 1500. Available in White or Amber, this kit utilizes the factory fog pocket location to pack two S1 lights on each side. This kit is controlled by the factory fog switch to operate the lower pair S1 lights. The upper pair of S1 lights are operated by your high beams. The included wiring harness is designed to be used in conjunction with factory light switches, and sPOD / Switch Pros units.
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
FITS
GMC Sierra 1500 2019-2022
INCLUDED WITH KIT:
SKU: 380001
Dimensions
| Depth (in.) |
2.100 |
| Height (in.) |
2.100 |
| Length (in.) |
2.100 |
| Weight (lbs.) |
0.400 |
Specifications
| Amperage Rating (A) |
1.420 |
| Average Rated Life (hr.) |
49,930 |
| Beam Pattern |
Spot |
| Bezel Material |
Billet Machined Aluminum |
| Brightness (Lumens) |
2320 |
| Description |
Spot; Clear |
| Housing Color |
Black |
| Housing Material |
Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color |
Clear |
| Lens Material |
Hardcoated Polycarbonate |
| Light Quantity |
1 |
| Lighting Modes |
Beam |
| Lighting Quantity |
1 |
| Lighting Technology |
LED |
| Lighting Type |
Forward Projecting |
| Mounting Hardware Included |
Yes |
| Mounting Hardware Material |
Stainless Steel |
| Overvoltage Protection |
Built-In |
| Product Type |
S1 LED Light Pod |
| Voltage |
9-28 |
| Wattage (W) |
19.596 |
|
|
SKU: 380015
Dimensions
| Depth (in.) |
2.100 |
| Height (in.) |
2.100 |
| Length (in.) |
2.100 |
| Weight (lbs.) |
0.400 |
Specifications
| Amperage Rating (A) |
1.420 |
| Average Rated Life (hr.) |
49,930 |
| Beam Pattern |
Wide Cornering |
| Bezel Material |
Billet Machined Aluminum |
| Brightness (Lumens) |
2320 |
| Description |
Wide Cornering; Amber |
| Housing Color |
Black |
| Housing Material |
Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color |
Amber |
| Lens Material |
Hardcoated Polycarbonate |
| Light Quantity |
1 |
| Lighting Modes |
Beam |
| Lighting Quantity |
1 |
| Lighting Technology |
LED |
| Lighting Type |
Forward Projecting |
| Mounting Hardware Included |
Yes |
| Mounting Hardware Material |
Stainless Steel |
| Overvoltage Protection |
Built-In |
| Product Type |
S1 LED Light Pod |
| Voltage |
9-28 |
| Wattage (W) |
19.596 |
|
|
