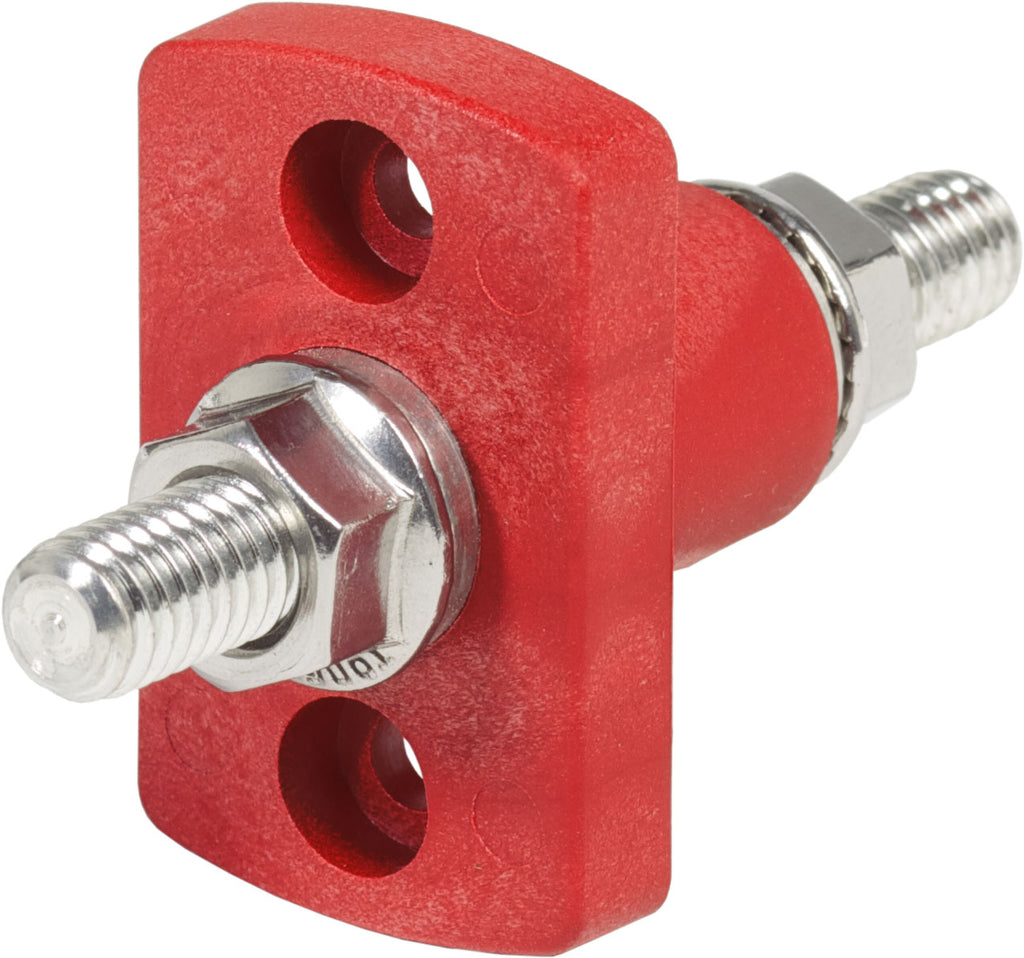

Eliminates chage and provides strain relief when passing high current through hulls, decks and bulkheads
- Perfect for passing high current cables through hulls, decks and bulkheads
- Large cables passed through holes are subject to chafing even when protective grommeting is used. Terminal Feed Through Connectors eliminate chafing and provide excellent strain relief for the cable
- Large size terminals have a mounting face that can be gasketed or bedded to provide a water tight installation
- Rated IP66 — withstands water from heavy seas
| Specifications |
| Amperage |
250A
|
| Color |
Red
|
| Maximum Voltage |
48V DC
|
| Stud Size |
3/8"-16
|
| Base Material |
Reinforced Thermoplastic
|
| Recommended Torque |
100 in-lb (11.3 N·m)
|
| Stud Material |
Tin-Plated Copper Alloy
|
| Weight |
0.30lb (0.14 kg) |
